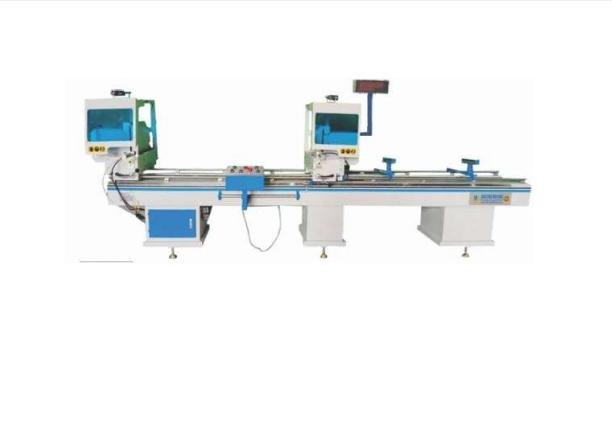

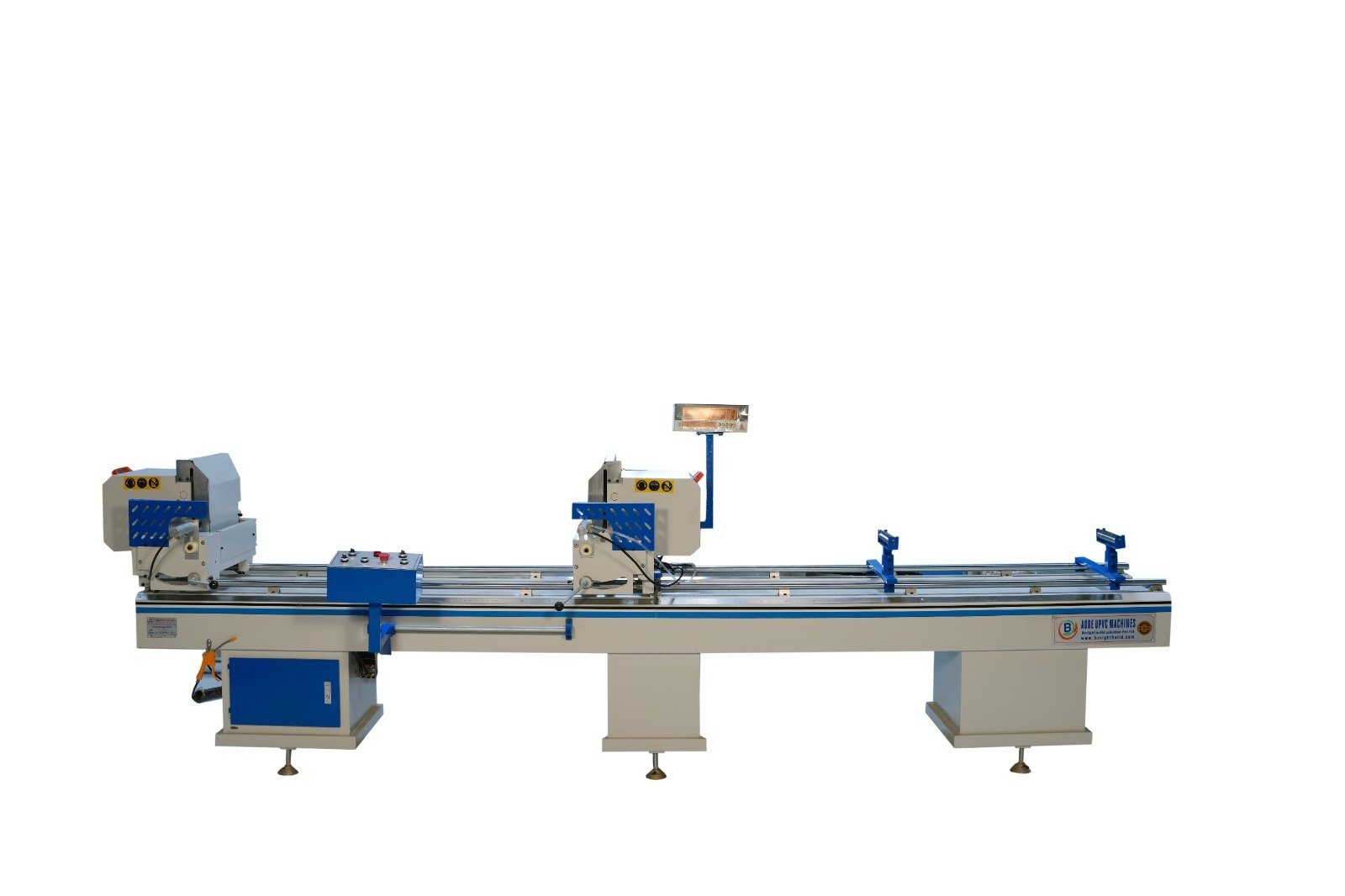

DOUBLE HEAD CUTTING WITH DISPLAY SJ04-3500
  • USED FOR CUTTING UPVC PROFILE
  • DIGITAL SENSOR MEASUREMENT SYSTEM (shows the measurement digitally)
  • ACCURACY CUTTING,EASY OPERATION
  • WORKING LIKE FEEDING CLAMPING ARE FULLY PNEUMATIC CONTROLLED
  • AIR GUN
  • USE OF THREE LEG TO AVOID BENDING OF MACHINES FROM CENTER
  • MOVEMENT OF SECOND HEAD MANUALLY
Input Power 3K
Power Supply 380V 50HZ
Cutting Length 450-3500mm
DOUBLE HEAD CUTTING WITH DISPLAY USED FOR CUTTING UPVC PROFILE

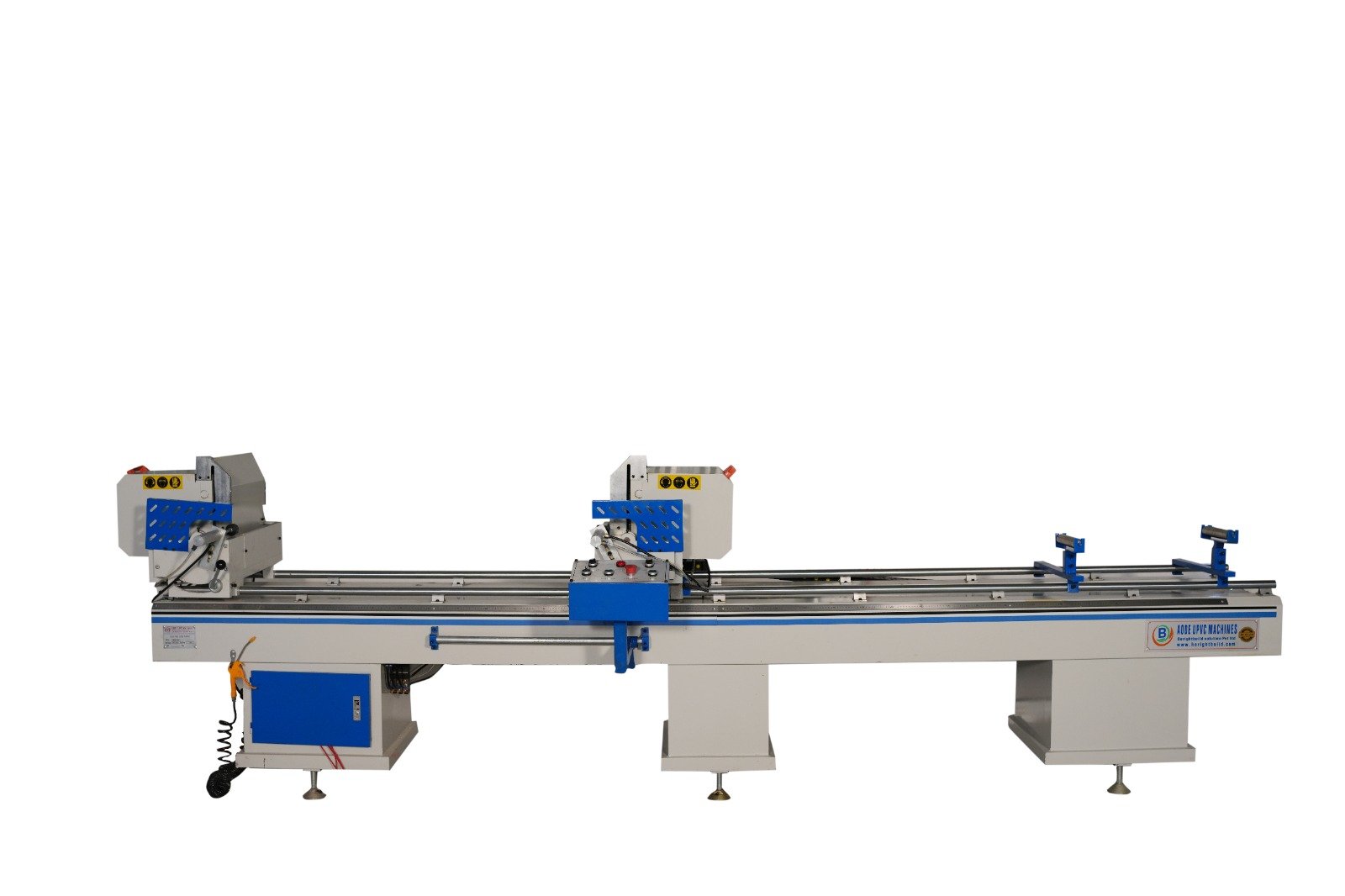

DOUBLE HEAD CUTTING MACHINE SJ03-3500
  • USED FOR CUTTING UPVC PROFILE
  • WORKING LIKE FEEDING CLAMPING ARE FULLY PNEUMATIC CONTROLLED
  • AIR GUN
  • SCALE MEASUREMENT AND STAND WITH ROLLER ATTACHED
  • MOVEMENT OF SECOND HEAD MANUALLY
  • USE OF THREE LEG TO AVOID BENDING OF MACHINES FROM CENTER
  • ACCURACY CUTTING,EASY OPERATION
Input Power 3Kw
Power Supply 380V 50HZ
Cutting Length 450-3500MM
DOUBLE HEAD CUTTING USED FOR CUTTING UPVC PROFILE

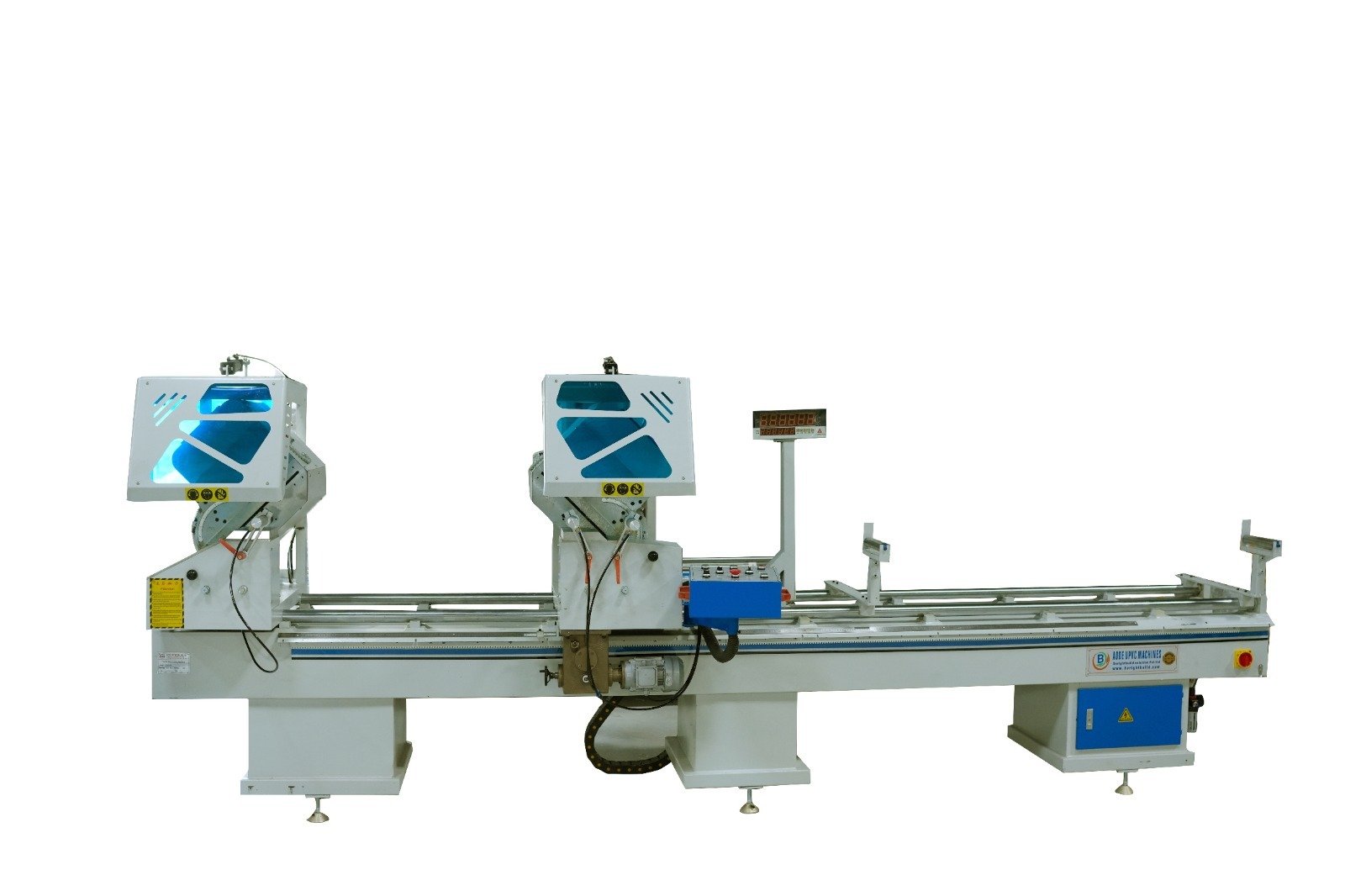

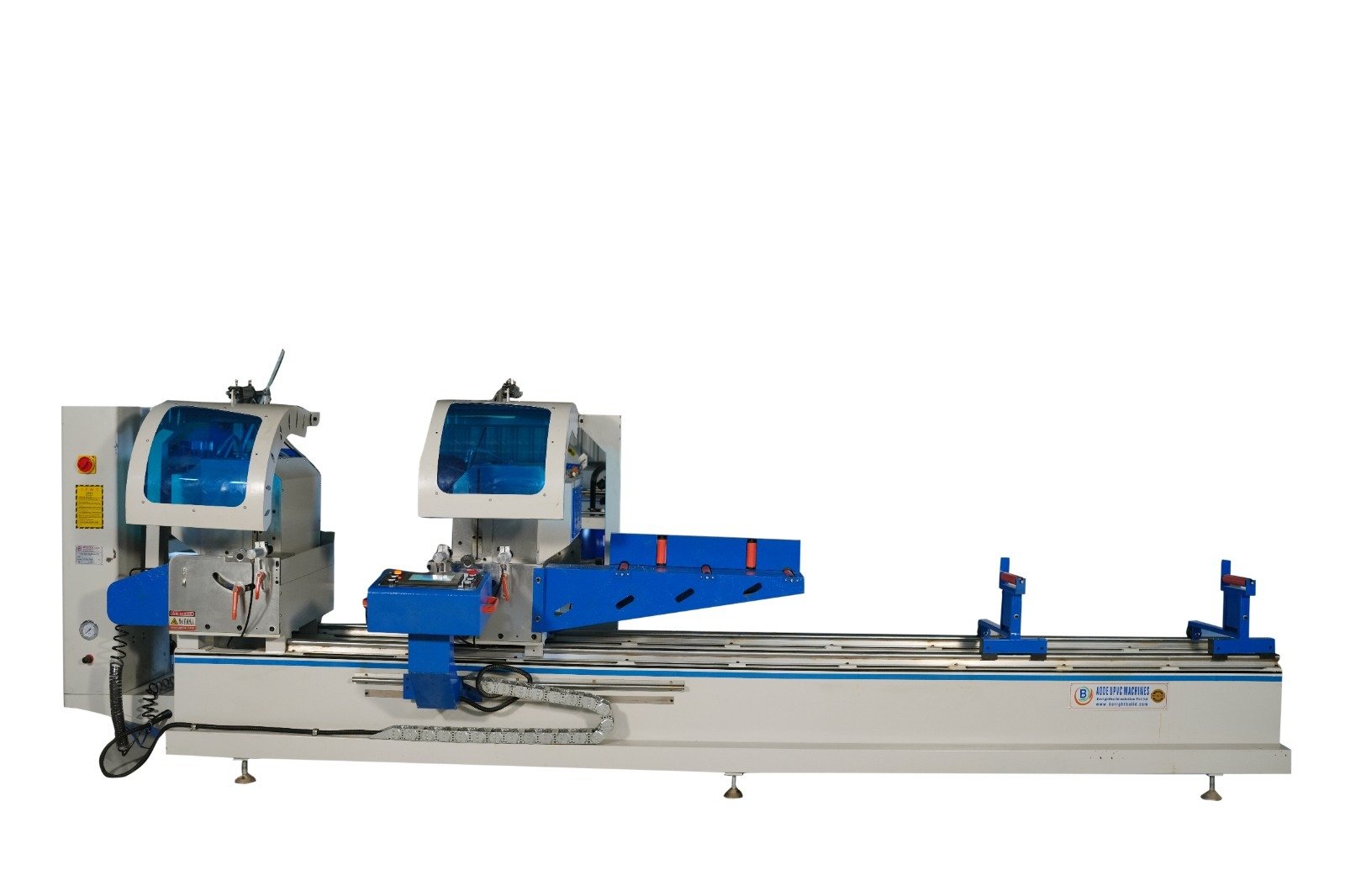

DOUBLE HEAD SYSTEM ALUMINIUM CUM UPVC CUTTING MACHINE LJZ6-520*3700-180MM (180mm )
  • USED FOR CUTTING UPVC AND OF ALUMINIUM PROFILE
  • CUTTING OF ALUMINIUM AND UPVC IS POSSIBLE WITHOUT CHANGING BLADES
  • ALL WORKING PNEUMATICALLY CONTROLLED LIKE FEEDING ,CLAMPING,MOVEMENT
  • AIR GUN
  • MOVEMENT OF SECOND HAND BY PNEUMATIC AND MOTOR OPERATION (not manually)
  • SAFETLY COVER & DIGITAL MEASUREMENT SYSTEM
  • SCALE MEASUREMENT ALSO IN THIS MACHINE
Input Power 5Kw
Power Supply 380V 50HZ
Cutting Length 3700MM
Double Head Cutting USED FOR CUTTING UPVC AND OF ALUMINIUM PROFILE

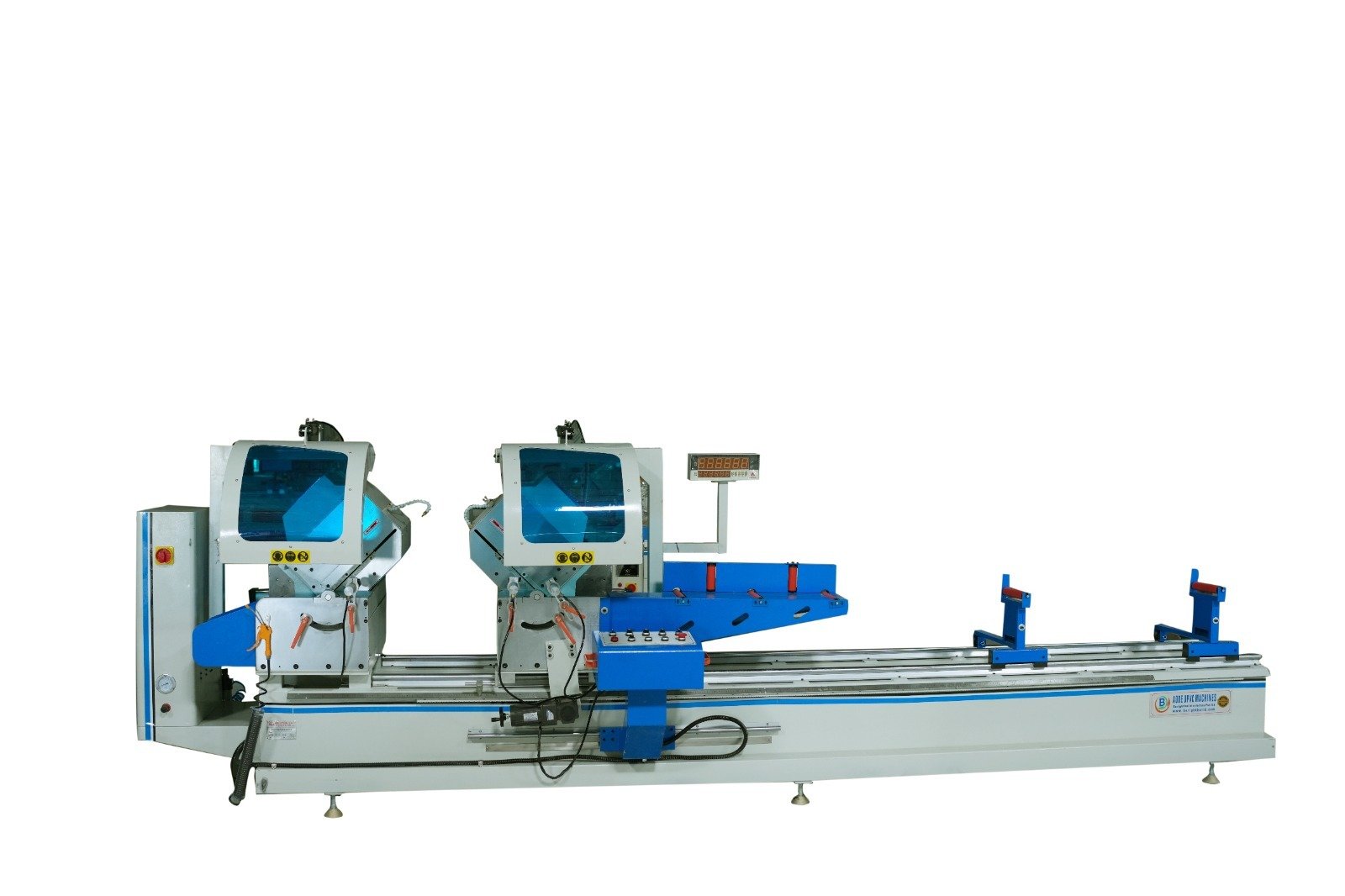

DOUBLE HEAD ALUMINIUM CUM UPVC CUTTING MACHINE SJ-06-500-3700-150MM
  •  CUTTING  ALUMINUM AND UPVC IS POSSIBLE WITHOUT CHANGING BLADES
  • PNEUMATICALLY WORKING SAFETY COVER
  • MOVEMENT OF SECOND HAND BY PNEUMATIC AND MOTOR OPERATION (not manually)
  • ALL WORKING PNEUMATICALLY CONTROLLED LIKE FEEDING ,CLAMPING,MOVEMENT
  • SCALE MEASUREMENT ALSO IN THIS MACHINE(other than digital)
  • AIR GUN
  • DIGITAL SENSOR MEASUREMENT SYSTEM (shows the measurement digitally)
  • SPRAY SWA BLADE SYSTEM(storage of water etc is possible)
Input Power 3.55Kw
Power Supply 380V 50HZ
Cutting Length 450-3700MM
DOUBLE HEAD CUTTING USED FOR CUTTING UPVC AND OF ALUMINIUM PROFILE
DOUBLE HEAD CNC SYSTEM ALUMINIUM CUM UPVC CUTTING MACHINE LJZ6-500*3700-160MM
  • USED FOR CUTTING UPVC AND ALUMINIUM PROFILE.
  • CUTTING OF ALUMINIUM AND UPVC IS POSSIBLE WITHOUT CHANGING BLADES.
  • MOVEMENT OF SECOND HEAD FULLY AUTOMATIC OPERATION.
  • AUTOMATIC WORKING SAFETY COVER.
  • AIR GUN
  • ALL WORKING IS FULLY AUTOMATICALLY CONTROLLED LIKE FEEDING, MOVEMENT, CLAMPING .
Input Power 5Kw
Power Supply 380V 50HZ
Cutting Length 3700MM
DOUBLE HEAD CUTTING USED FOR CUTTING UPVC AND OF ALUMINIUM PROFILE

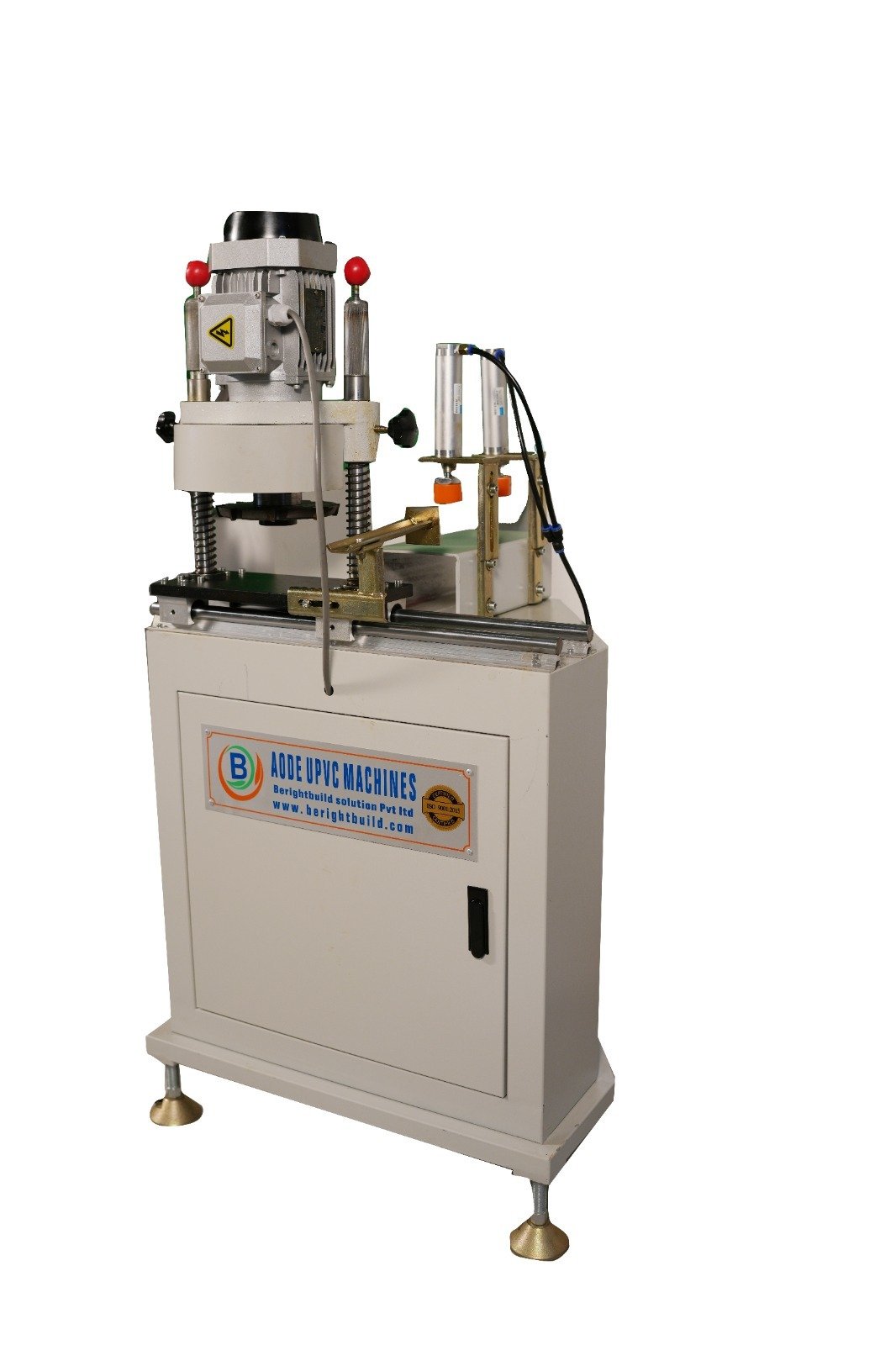

END MILLING MACHINE LXD-80
  • THIS MACHINE CAN BE USED FOR UPVC & ALUMINIUM
  • MAIN PURPOSE OF THIS MACHINE IS DOING MILLING FOR MECHANICAL JOINTS IN MULLION
  • CUTTER INTO MACHINE SHOULD BE CHANGE AS PER THE BRAND PF PROFILE USING
  • PNEUMATIC CLAMPING
  • EASY AND SIMPLE OPERATION
Input Power 1.5Kw
Power Supply 380V 50HZ
Input Diameter of Cutter 30mm
Spindle Speed 2800 r/min

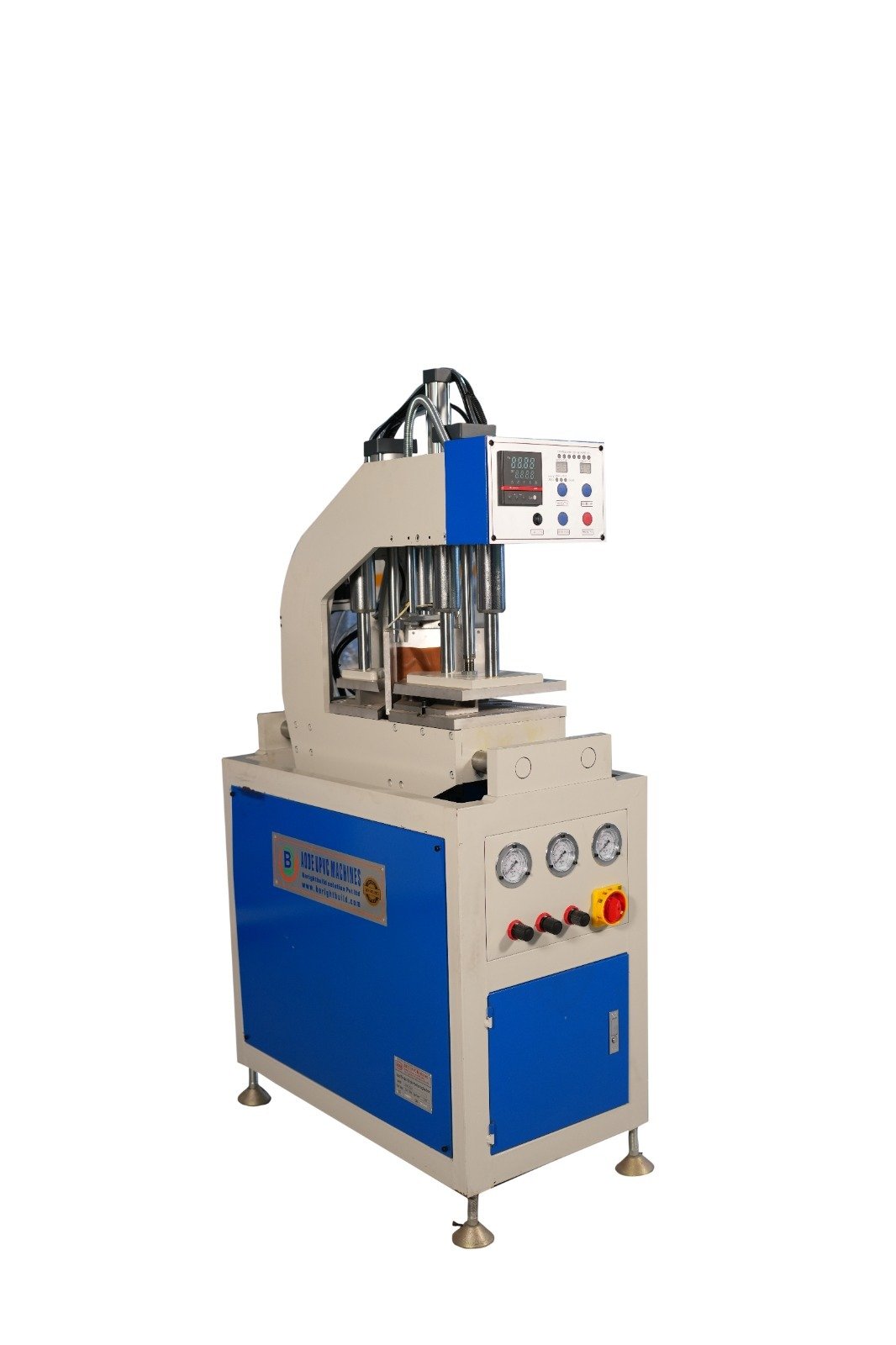

SINGLE HEAD WELDING MACHINE HJ01-120
  • USED FOR WELDING CORNERS AND MULLION OF WINDOWS
  • PLC OPERATED
  • HEATING COOLING TIME HEATING TEMPERATURE CAN BE ADJUST AS PROFILE REQUIREMENT
  • AUTOMATIC OPERATION
  • AT A TIME SINGLE CORNER CAN BE WELD
Input Power 1.2Kw
Power Supply 220V 50Hz
Welding Power 20-120 mm
Working Pressure 0.4-0.6 mpa

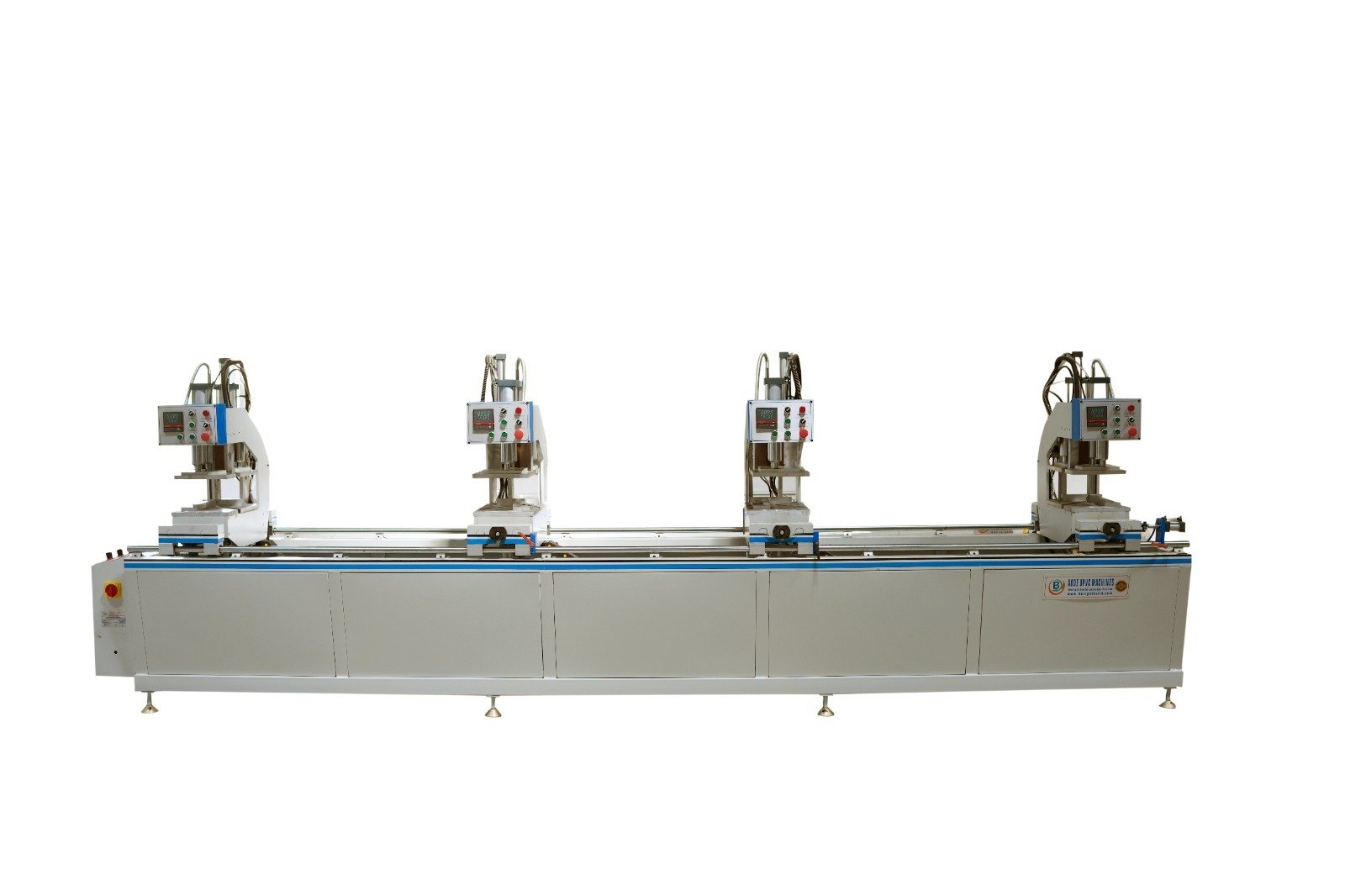

FOUR HEAD WELDING MCHINE WFH04-4500.4
  • USED FOR WELDING CORNERS OF UPVC WINDOWS AND DOORS WITH MULLION WELDING
  • DUE TO FOUR HEADS IT CAN BE PREPARE TWO SET OF WINDOWS AND DOORS AT ONE TIME
  • IT CAN WELD FOUR CORNER AT ONE TIME
  • USE OF FOUR LEG TO AVOID BENDING OF MACHINES FROM CENTER
  • MACHINE STAND IS ATTACHED WITH MACHINE BODY(no need to buy separate )
  • EACH HEAD HAVE THE FACILITY OF L WELDING AS WELL AS V WELDING
Input Power 4.5Kw
Power Supply 220V 50Hz
Welding Height 20-140 mm
Working Pressure 0.4-0.6 mpa

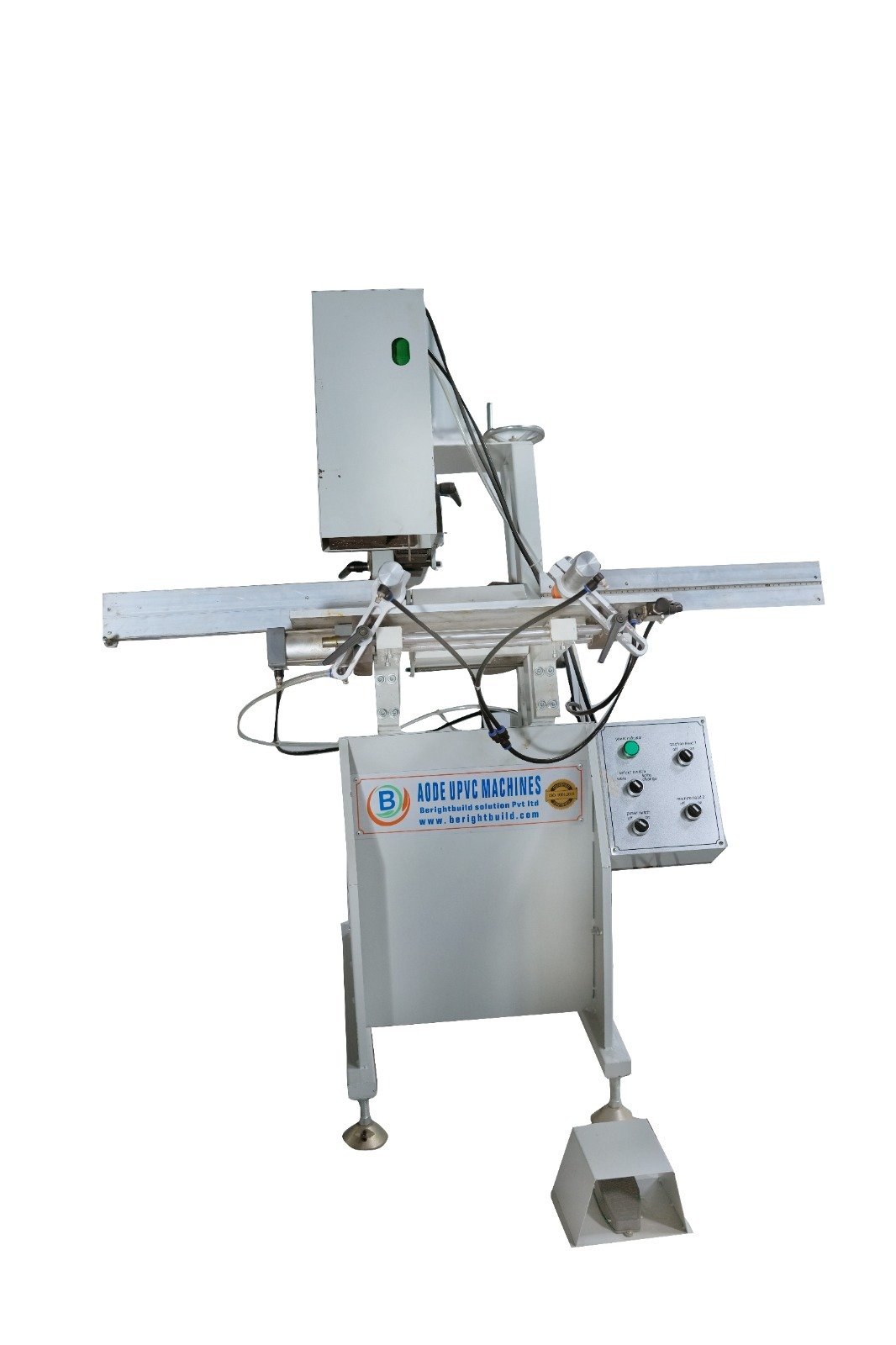

WATERSLOT MILLING MACHINE SCX02-2X60
  • USED FOR PROCESSING VARIOUS WATER GROOVES (making passage for water to flow out)
  • THE UPPER CAN BE ADJUSTED FORWARD, BACKWARD, UPWARD AND DOWNWARD.
  • IN ONE TIME CLAMPING UPPER AND HORIZONTAL DIRECTIONS.
  • DURING WORKING THE HEADS CAN MOVE INDIVIDUALLY OR JOINTLY.
  • IT CAN BE FREELY SELECTED, AND EASY FOR OPERATION .
Input Power 1.14Kw
Power Supply 220V 50Hz
Air Pressure 0.5-0.8 mpa
Diameter of Milling Cutters 4mm-5mm
Slot Length 30mm-60mm
Slot Depth 60mm

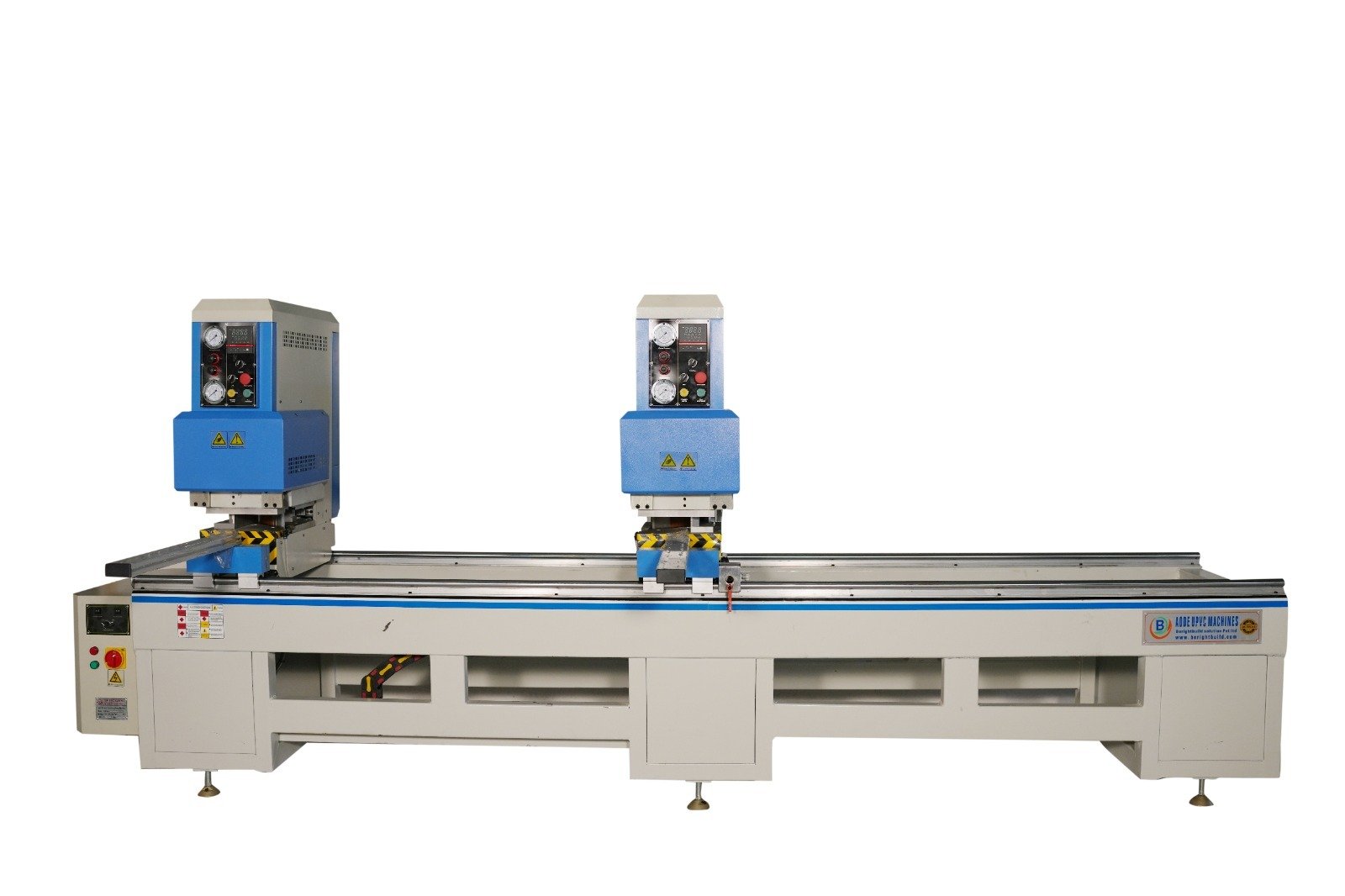

DOUBLE HEAD SEAM +SEAMLESS WELDING MACHINE
  • SUITABLE FOR WELDING WHITE, COLOUR, LAMINATED PROFILE.
  •  L WELDING AND V WELDING BOTH IS POSSIBLE IN EACH HEAD.
  • FULLY PNEUMATIC AND ELECTRIC AUTOMATIC OPERATION.
  • WELDING AND CLEANING AT SINGLE TIME
  • PLC CONTROLLED.
  • MACHINE STAND IS ATTACHED WITH MACHINE BODY (no need to buy separate).
  • SEAM OR SEAMLESS BOTH WELDING POSSIBLE IN THIS MACHINE.
  • YOU CAN ADJUST HEATING TEMPERATURE, COOLING AND HEATING TIME AS YOU REQUIREMENTS.
Input Power 4.5Kw
Power Supply 220V 50Hz
Welding Height 20-140 mm
Welding Range 400mm-4500mm

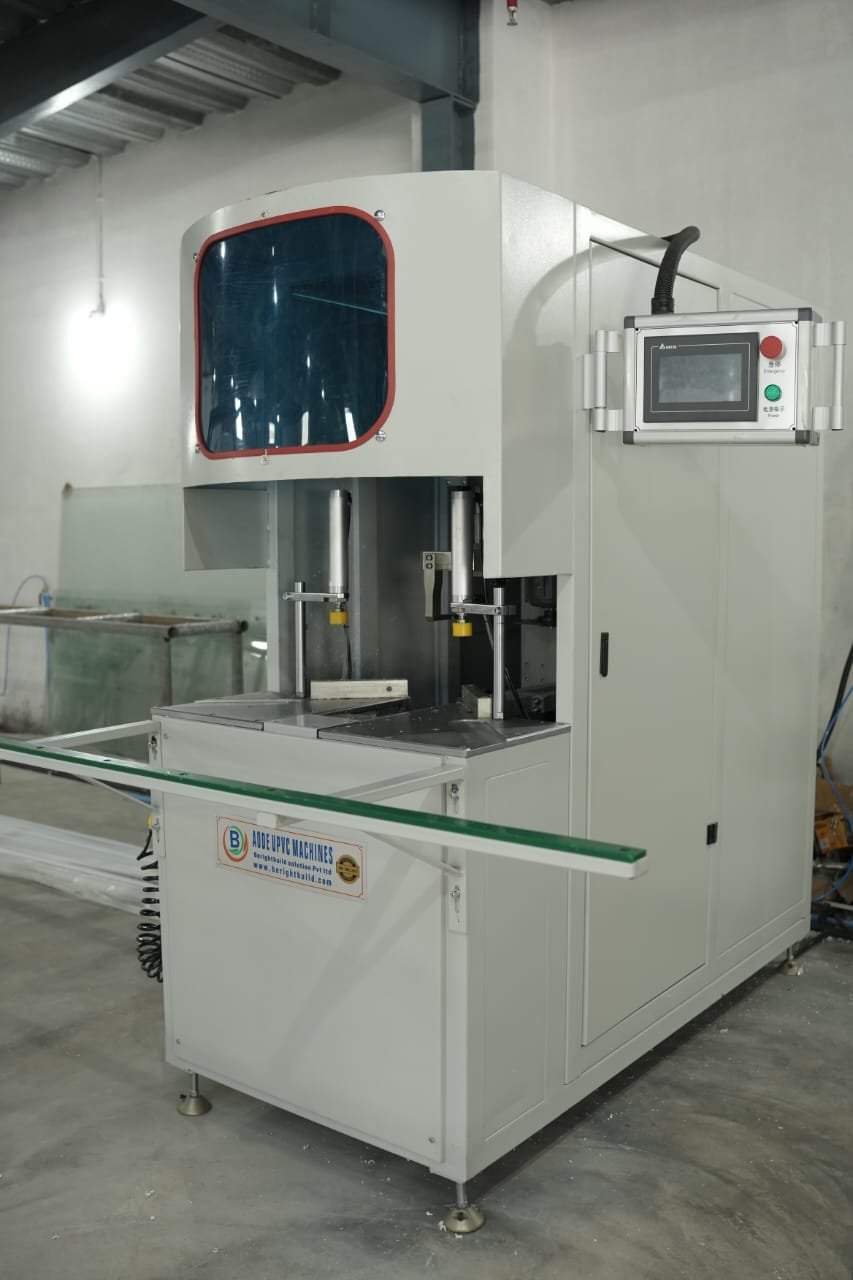

CNC CORNER CLEANING MACHINE JQK06/03-CNC-120
  • USED FOR CLEANING ANGLE SEAM OF UPVC DOORS AND WINDOWS
  • IT CAN CLEAN TOP,BOTTOM,INNER OR OUTER OF UPVC DOORS AND WINDOWS DEPENDS AS YOU SELECT THE CUTTER
  • IT IS ONE SET OF MECHANICAL ,ELECTRICAL ,PNEUMATIC AND CNC TECHNOLOGIES
  • FULLY AUTOMATIC OPERATION
  • PROGRAMMED FOR EACH PROFILE AS PER THE SIZE OF IT
  • IT IS ONE SET OF MECHANICAL,ELECTRICAL PNEUMATIC AND CNC TECHNOLOGY
Cutting Motor Power 1.1Kw
Power Supply 380V 50HZ
Principal Axis Rotate Speed 2800 r/min
Processing Profile Height 30mm-125mm

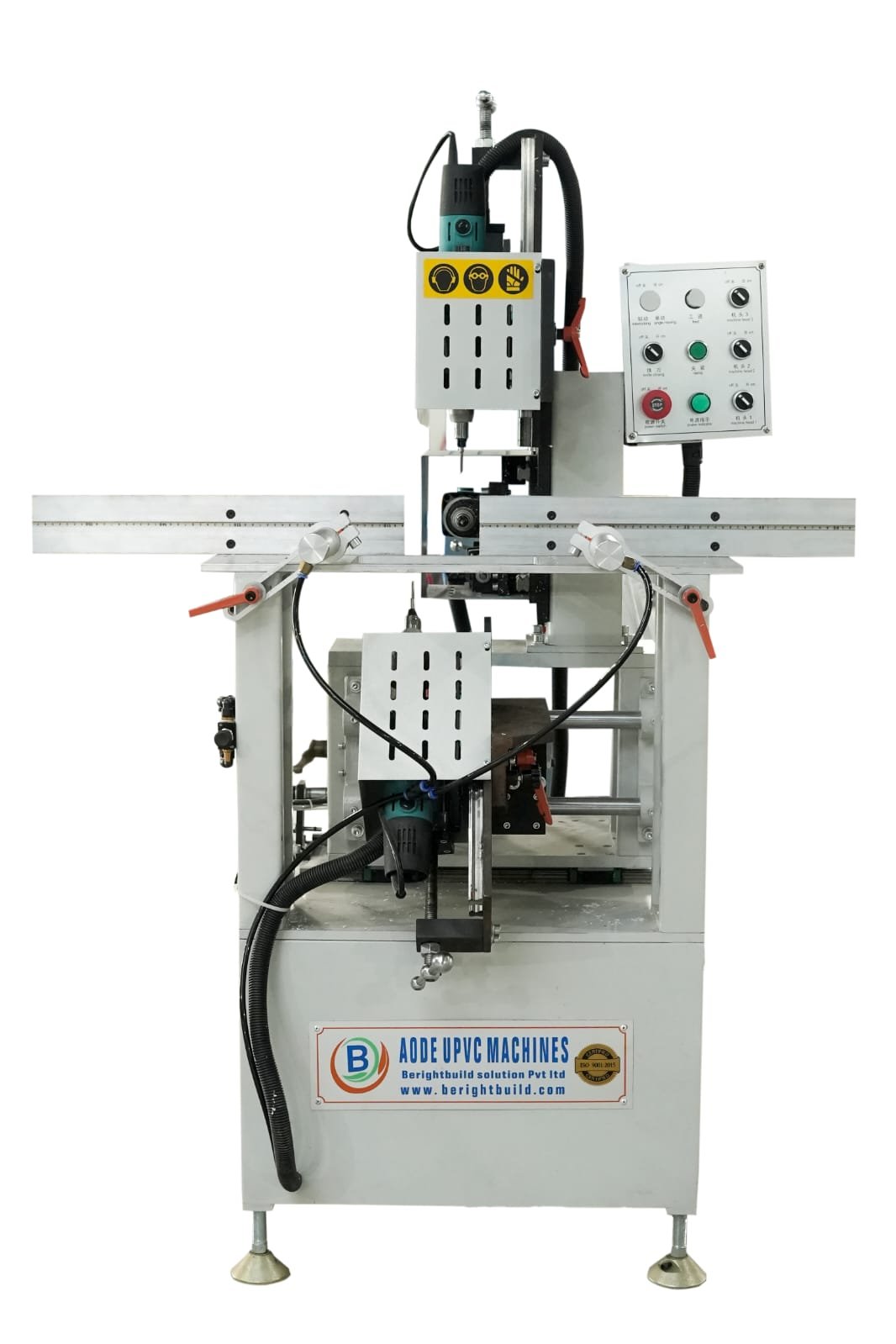

3 AXIS WATERSLOT MILLING MACHINE SCX02-3X60
  • USED FOR PROCESSING VARIOUS WATER GROOVES (making passage for water to flow out ).
  • THE UPPER CAN BE ADJUSTED FORWARD, BACKWARD,UPWARD AND DOWNWARD.
  • IN ONE TIME CLAMPING UPPER AND HORIZONTAL DIRECTIONS.
  • DURING WORKING THE HEADS CAN MOVE INDIVIDUALLY OR JOINTLY.
  • IT CAN BE FREELY SELECTED, AND EASY FOR OPERATION.
Input Power 1.14Kw
Power Supply 220V 50Hz
Diameter of Milling Cutters 4mm-5mm
Air Pressure 0.5-0.8 mpa

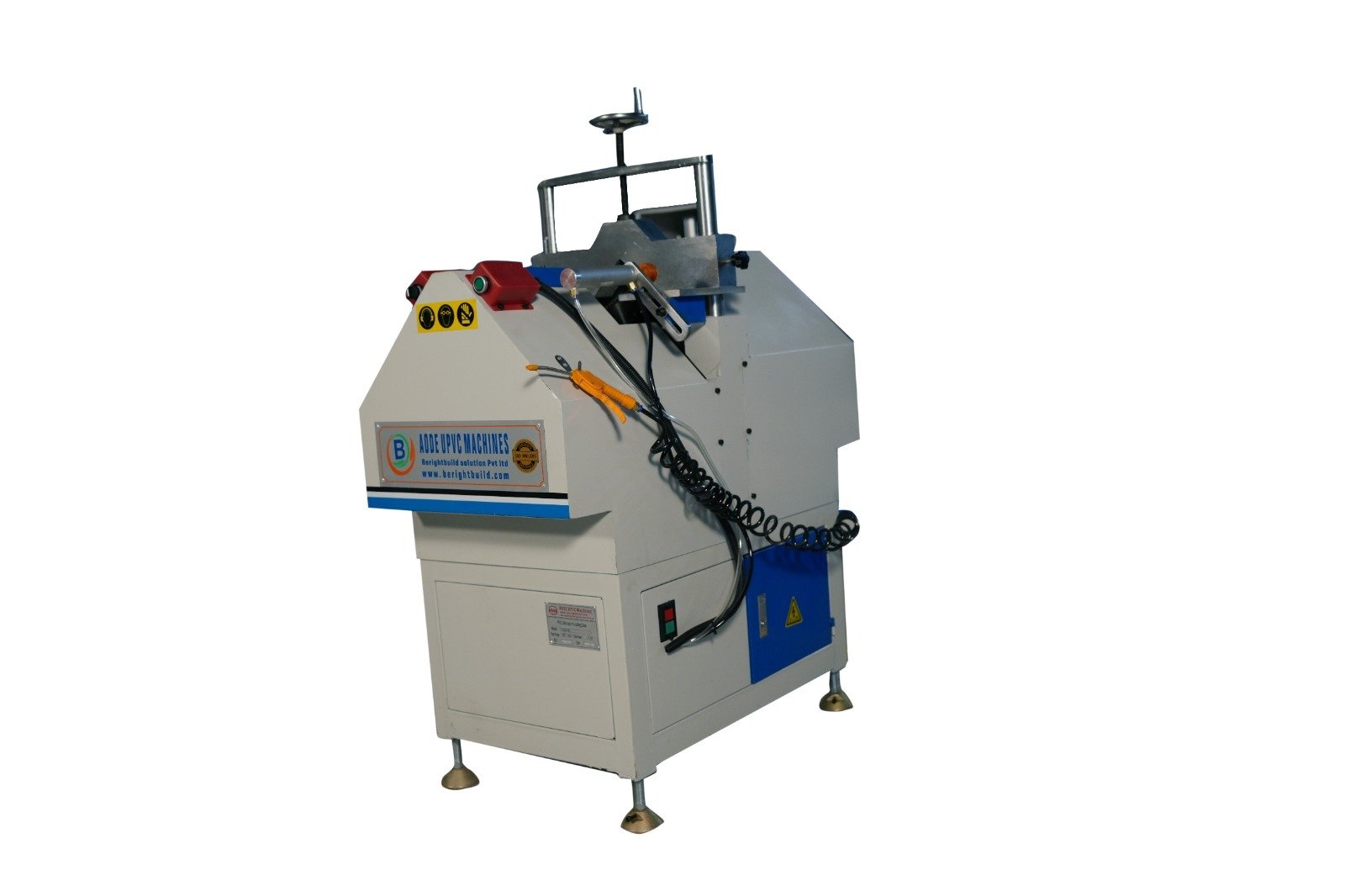

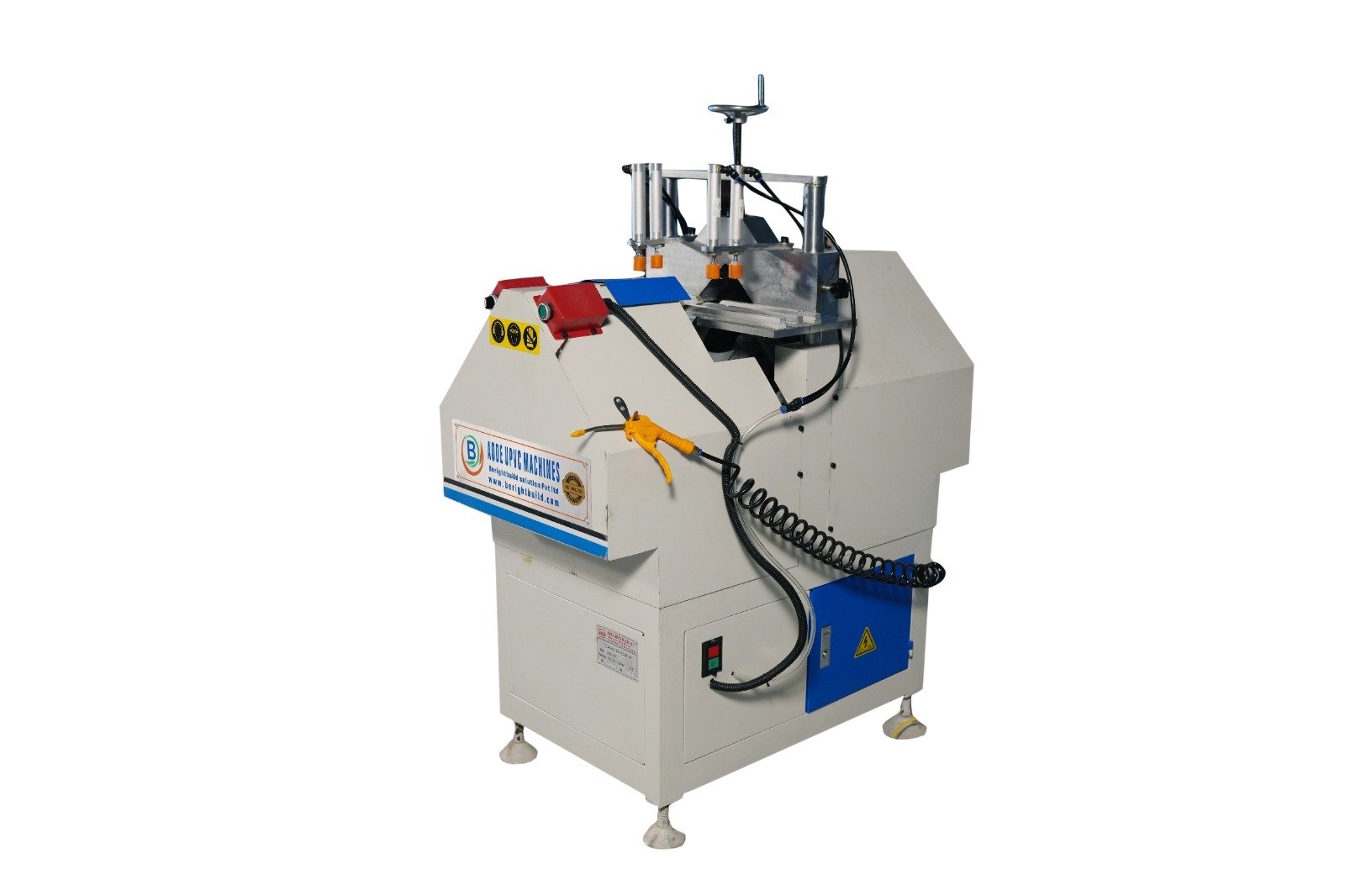

V CUTTING MACHINE VJ02-60
  • USED FOR CUTTING UPVC PROFILE, V SHAPED GROOVES.
  • MOVEMENT OF BLADE IS PNEUMATIC OPERATION.\
  • MEASUREMENT SCALE IS ATTACHED.
  • PNEUMATIC DRIVING SYSTEM.
  • EASY OPERATION, SAFETY RELIABILITY.
  • V CUTTING DONE FOR JOINING OF MULLION WELDING (V welding).
Cutting Motor Power 2*0.75Kw
Power Supply 380V 50HZ
Motor Rotary Speed 3200r/min
Blade Diameter 230mm
AIR COMPRESSOR
DOUBLE HEAD CUTTING MACHINE WITH COVER AND DISPLAY SJ02-3500
  • USED CUTTING UPVC PROFILE WITH DISPLAY.
  • WORKING LIKE FEEDING CLAMPING ARE FULLY PNEUMATIC CONTROLLED.
  • SCALE MEASUREMENT AND STAND WITH ROLLER ATTACHED.
  • AIR GUN.
  • DIGITAL SENSOR MEASUREMENT SYSTEM (SHOWS THE MEASUREMENT DIGITALLY).
  • USE OF THREE LEG TO AVOID BENDING OF MACHINES FROM CENTER.
  • ACCURACY CUTTING, EASY OPERATION.
  • MOVEMENT OF SECOND HEAD MANUALLY.
  • PROVIDED COVER FOR SAFETY.
Input Power 3Kw
Power Supply 380V 50HZ
Cutting Length 450-3500MM
Double Head Cutting With Display And Cover USED FOR CUTTING UPVC PROFILE

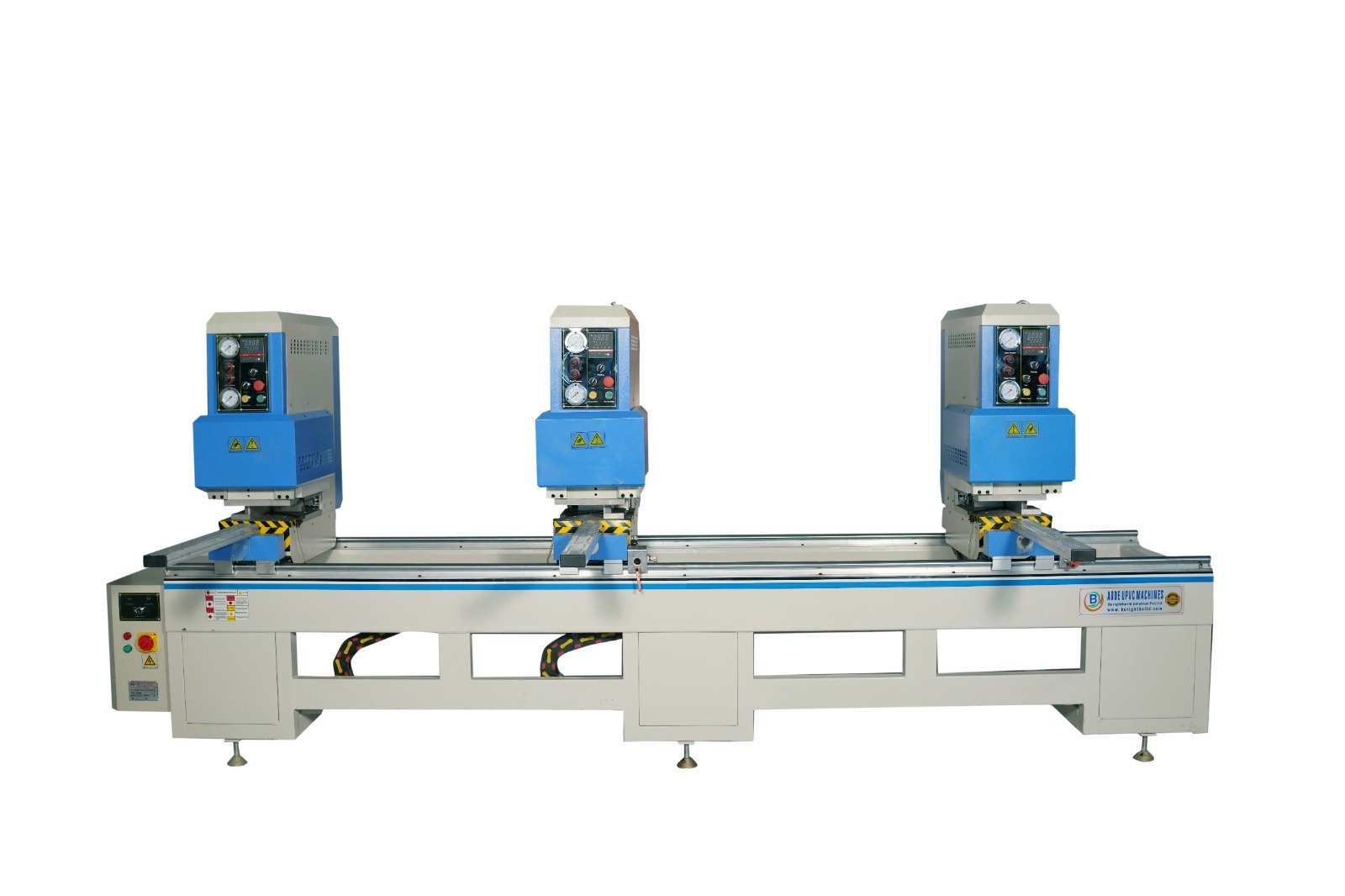

THREE HEAD SEAM + SEAMLESS WELDING MACHINE WFH04-3500.3
  • SUITABLE FOR WELDING WHITE,COLOUR, LAMINATED PROFILE.
  •  L WELDING AND V WELDING BOTH IS POSSIBLE IN EACH HEAD.
  • FULLY PNEUMATIC AND ELECTRIC AUTOMATIC OPERATION.
  •  WELDING AND CLEANING AT SINGLE TIME.
  • PLC CONTROLLED.
  • MACHINE STAND IS ATTACHED WITH MACHINE BODY (NO NEED TO BUY SEPARATE).
  • SEAM OR SEAMLESS BOTH WELDING POSSIBLE IN THIS MACHINE.
  • YOU CAN ADJUST HEATING TEMPERATURE, COOLING AND HEATING TIME AS YOUR REQUIREMENTS.
Input Power 3.5Kw
Power Supply 220V 50Hz
Welded Profile Height 20-135mm
Welded Profile Width 135mm

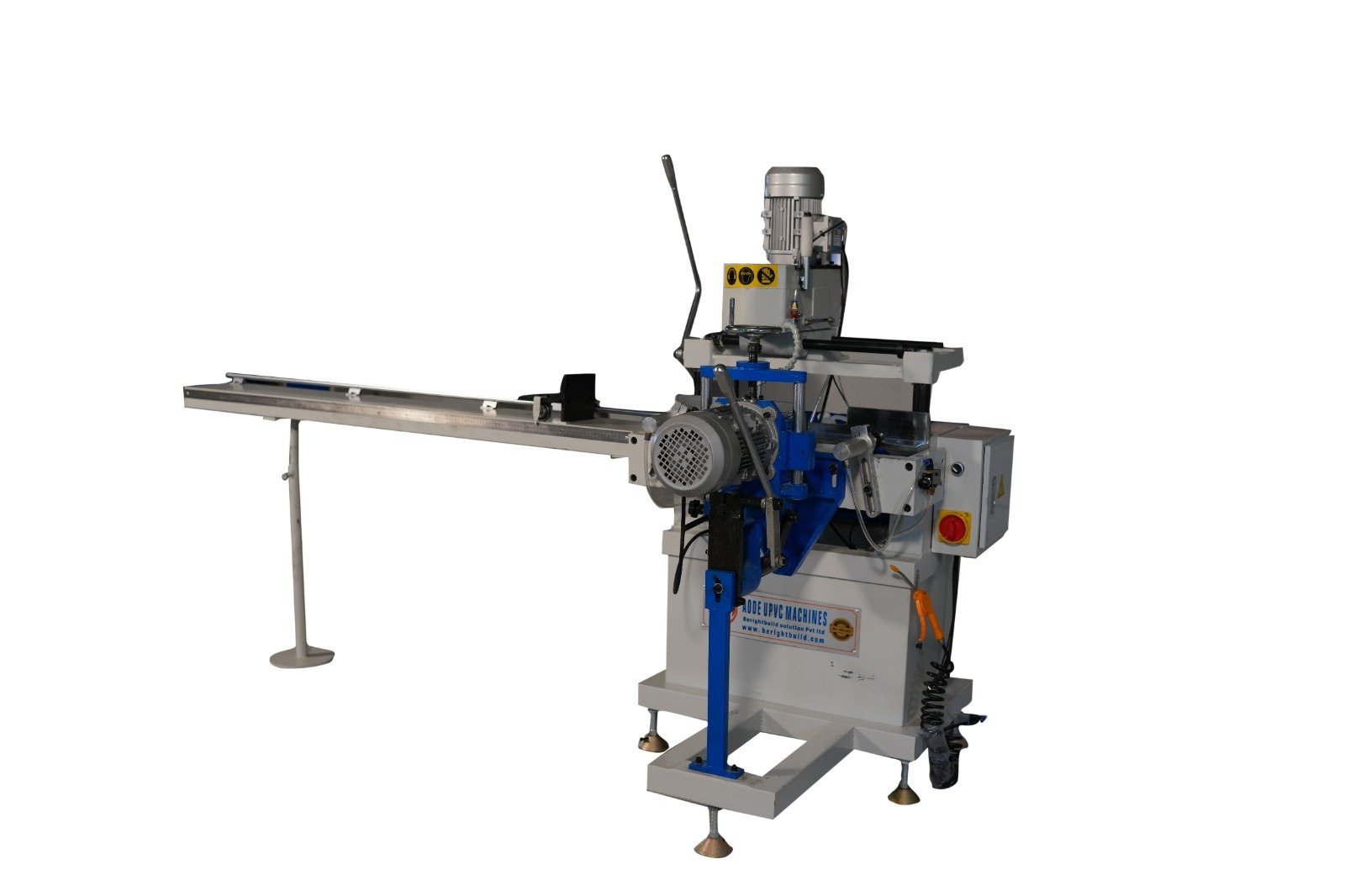

ALUMINIUM CUM UPVC LOCK HOLE CUM COPY ROUTING MACHINE SK02-100B
  • MAIN USAGE IS MAKING SLOT FOR FIXING HARDWARES.
  • USED FOR PROCESSING FOR ALUMINIUM AND UPVC DOORS AND WINDOORS.
  • TOP HEAD IS USED FOR COPY ROUTING (CYLINDER HOLE, TOUCH & POP UP HANDLE ETC).
  • BOTTOM HEAD IS USED FOR TRIPLE DRILLING (TO FIX HANDLE HOLE & ESPAGS IN UPVC WINDOWS & DOORS).
  • PNEUMATIC CLAMPING.
  • WITH FEATURES OF COMPACT STRUCTURE.
Input Power 1.85Kw
Power Supply 380V 50HZ
Diameter of Milling Cutters 5/8mm
Contour Dimension 1000*1130*1500
BEAD CUTTING MACHINE SYJ03-1800
  • USED FOR CUTTING UPVC PROFILE GLAZING BEADS.
  • IT CAN CUTTING TWO GLAZING BEADS AT A TIME.
  • THIS MACHINE CUTTING IS FIXED HORIZONTALLY.
  • CLAMPINNG OF PROFILE IS SIMPLE AND CUTTING MOVEMENT IS STABLE.
  • CUTTING BLADE IN THIS MACHINE AND MEASUREMENT SCALE ALSO WITH STAND ATTACHED.
  • IT CAN TWO PCS. OF BEADS AT A TIME.
Input Power 2*0.75Kw
Power Supply 380V 50HZ
Processing Range (L) 320-1800mm
T Motor Rotary Speed 2800 r/min
Diameter of Cutters 220 & 135mm
Motor Rotary Speed 80 L/min
V CORNER CLEANING MACHINE SQJ05-120
  • USED FOR CLEANING V CORNER WELDING LINES OF UPVC DOORS AND WINDOWS.
  • IT CAN CLEAN THE UPPER AND LOWER WELDING LINES.
  • IT EQUIPPED 2 DIFFERENT SHAPED CUTTERS.
  • FULLY PNEUMATIC DRIVING SYSTEAM.
  • NO NEED OF POWER, FULLY WORK AIR.
Processing Profile Height 40mm-120mm
Processing Profile Width 40mm-120mm
Overall Dimension 930*690*1300mm

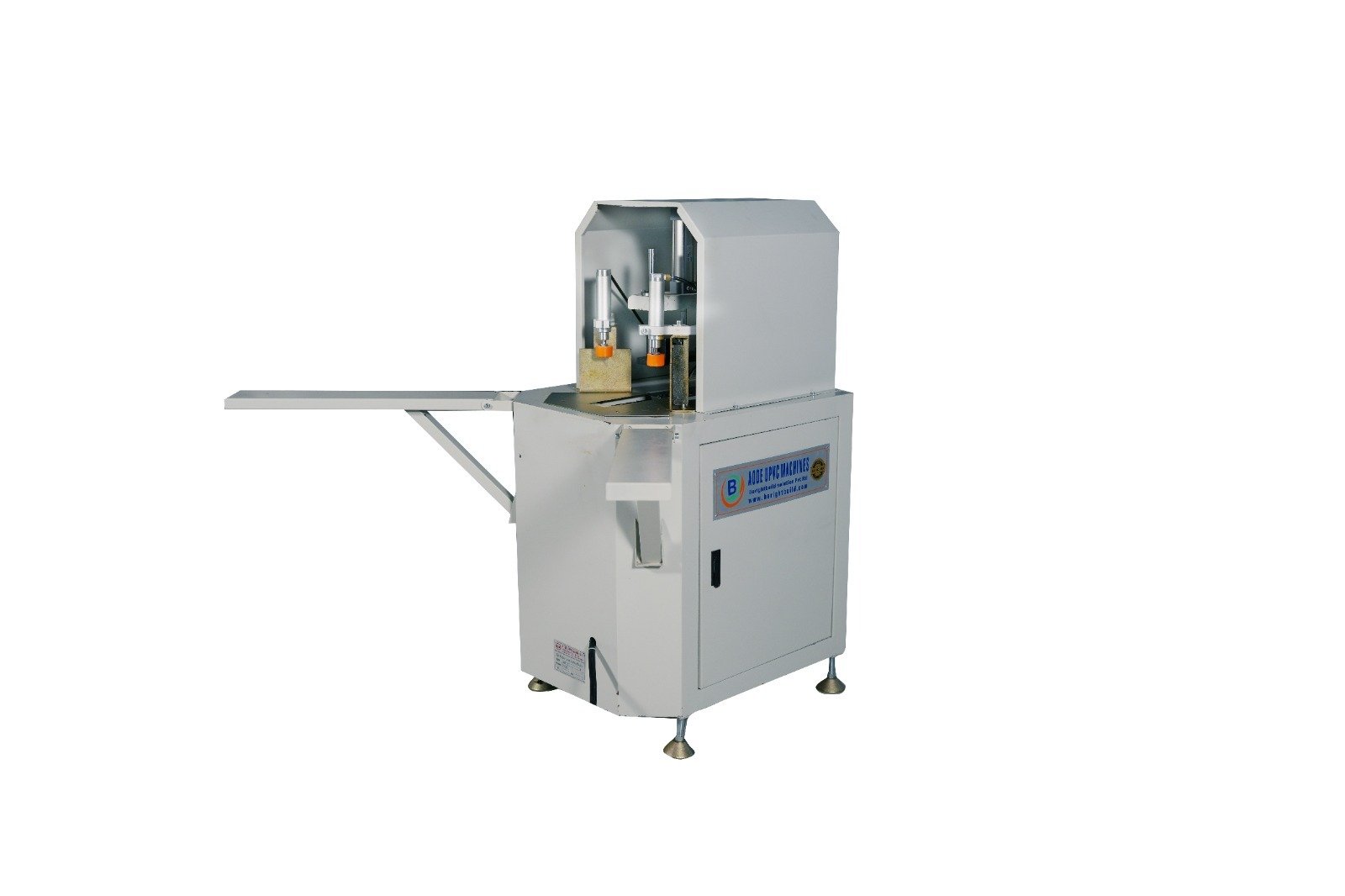

CORNER CLEANING MACHINE JQ06-120
  • USED FOR CLEANING CORNER WELDING LINES OF UPVC AND WINDOWS.
  • IT CAN CLEAN THE UPPER AND LOWER WELDING LINES.
  • IT IS EQUIPPED 2 DIFFERENT SHAPED CUTTERS.
  • FULLY PNEUMATIC DRIVING SYSTEM.
  • NO NEED OF POWER, FULLY WORK WITH AIR.
Processing Profile Height 25mm-120mm
Processing Profile Width 25mm-120mm
Overall Dimension 1600*1285*1370mm

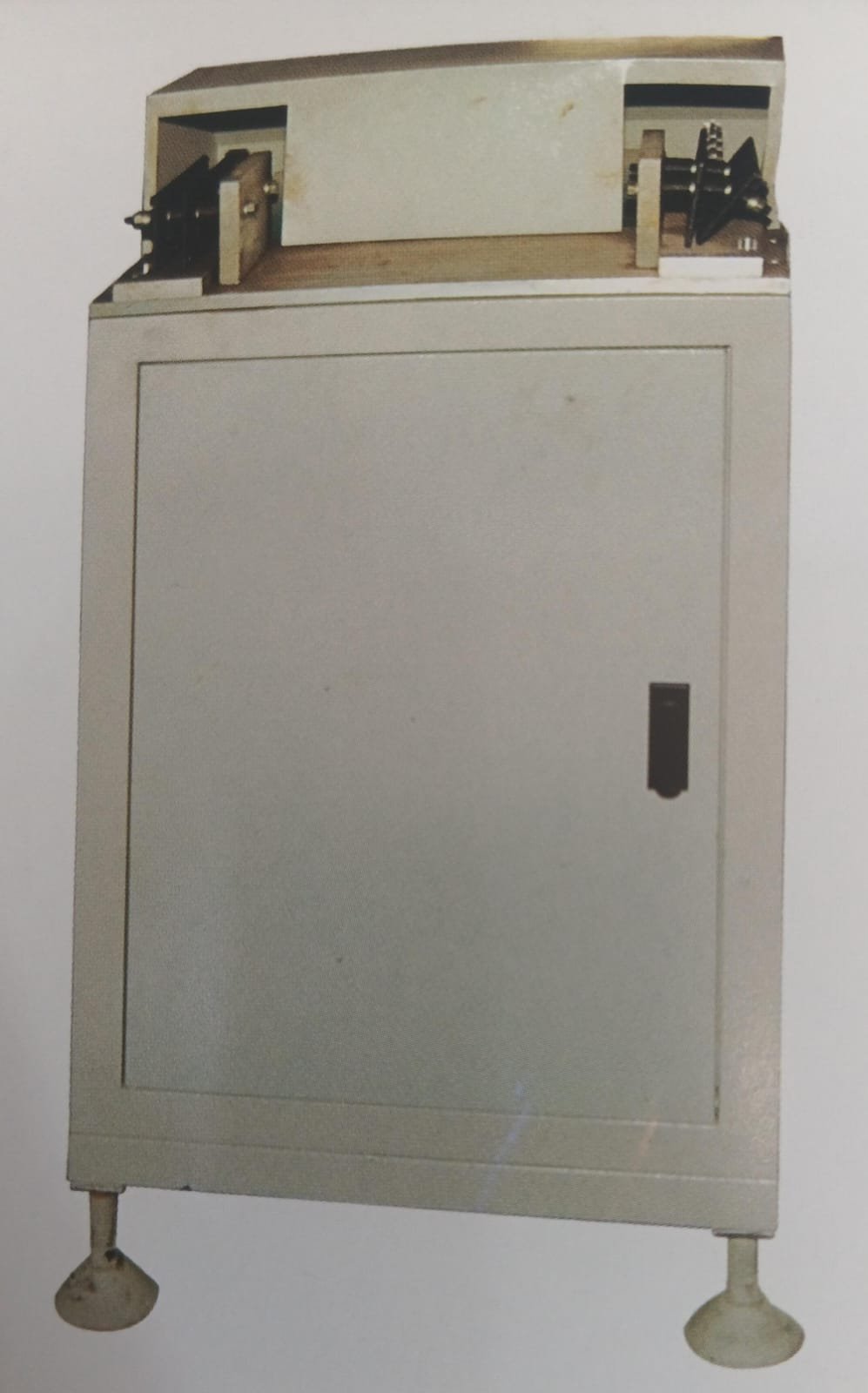

INTERLOCK DOUBLE SIDE MILLING MACHINE SF03-130
  • USED FOR MILLING OF INTERLOCK FOR UPVC PROFILE.
  • AT A TIME TWO PCS CAN DO MILLING.
  • MOTOR OPERATED.
Power Supply 380V 50HZ
Power Total 2800 r/min
Spindle Speed 930*690*1300mm
