system aluminium machines

Get to know our vision, values and commitment to your satisfaction.

DOUBLE HEAD SYSTEM ALUMINIUM CUM UPVC CUTTING MACHINE LJZ6-520*3700-180MM (180mm )
  • USED FOR CUTTING UPVC AND OF ALUMINIUM PROFILE
  • CUTTING OF ALUMINIUM AND UPVC IS POSSIBLE WITHOUT CHANGING BLADES
  • ALL WORKING PNEUMATICALLY CONTROLLED LIKE FEEDING ,CLAMPING,MOVEMENT
  • AIR GUN
  • MOVEMENT OF SECOND HAND BY PNEUMATIC AND MOTOR OPERATION (not manually)
  • SAFETLY COVER & DIGITAL MEASUREMENT SYSTEM
  • SCALE MEASUREMENT ALSO IN THIS MACHINE
Input Power 5Kw
Power Supply 380V 50HZ
Cutting Length 3700MM
Double Head Cutting USED FOR CUTTING UPVC AND OF ALUMINIUM PROFILE
DOUBLE HEAD ALUMINIUM CUM UPVC CUTTING MACHINE SJ-06-500-3700-150MM
  •  CUTTING  ALUMINUM AND UPVC IS POSSIBLE WITHOUT CHANGING BLADES
  • PNEUMATICALLY WORKING SAFETY COVER
  • MOVEMENT OF SECOND HAND BY PNEUMATIC AND MOTOR OPERATION (not manually)
  • ALL WORKING PNEUMATICALLY CONTROLLED LIKE FEEDING ,CLAMPING,MOVEMENT
  • SCALE MEASUREMENT ALSO IN THIS MACHINE(other than digital)
  • AIR GUN
  • DIGITAL SENSOR MEASUREMENT SYSTEM (shows the measurement digitally)
  • SPRAY SWA BLADE SYSTEM(storage of water etc is possible)
Input Power 3.55Kw
Power Supply 380V 50HZ
Cutting Length 450-3700MM
DOUBLE HEAD CUTTING USED FOR CUTTING UPVC AND OF ALUMINIUM PROFILE
DOUBLE HEAD CNC SYSTEM ALUMINIUM CUM UPVC CUTTING MACHINE LJZ6-500*3700-160MM
  • USED FOR CUTTING UPVC AND ALUMINIUM PROFILE.
  • CUTTING OF ALUMINIUM AND UPVC IS POSSIBLE WITHOUT CHANGING BLADES.
  • MOVEMENT OF SECOND HEAD FULLY AUTOMATIC OPERATION.
  • AUTOMATIC WORKING SAFETY COVER.
  • AIR GUN
  • ALL WORKING IS FULLY AUTOMATICALLY CONTROLLED LIKE FEEDING, MOVEMENT, CLAMPING .
Input Power 5Kw
Power Supply 380V 50HZ
Cutting Length 3700MM
DOUBLE HEAD CUTTING USED FOR CUTTING UPVC AND OF ALUMINIUM PROFILE
PUNCHING MACHINE FOR ALUMINIUM LC-30B
  • USED FOR HOLES ,GROVES OR BORES PUNCHES IN ALUMINIUM PROFILE
  • MACHINE CONTROLLED BY PNEUMATIC PEDALS

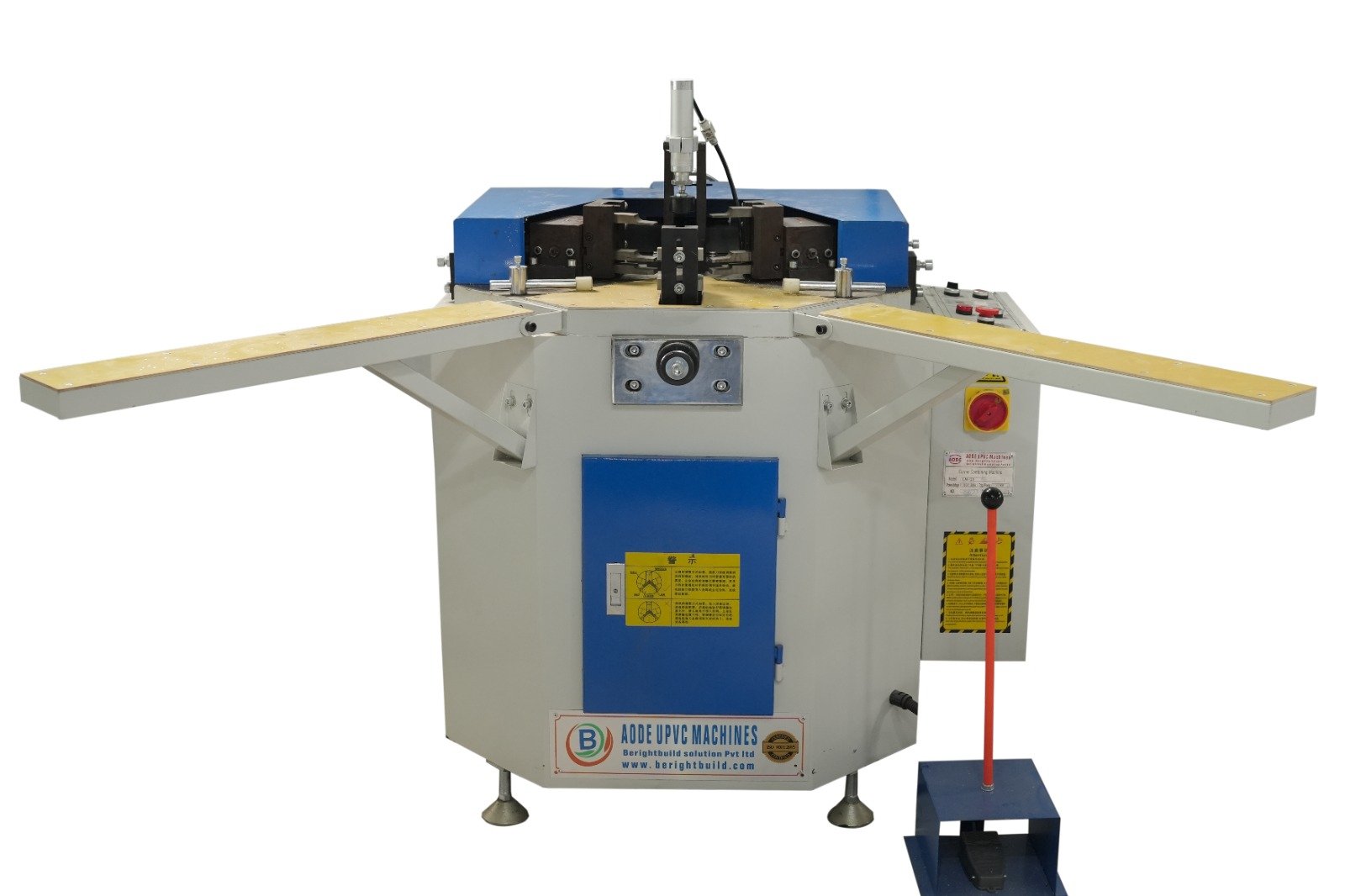

CORNER CRIMPING MACHINE FOR ALUMINUM LM-120
  • USED FOR JOINING THE CORNERS OF TWO ALUMINUM PROFILES.
  • JOINING OF TWO ALUMINUM PROFILES WITH A WEDGE.
  • PLACED INSIDE (CLIT) BY APPLYING PRESSURE.
Input Power 1.5Kw
Power Supply 380V 50HZ
Overall Dimension 1100*1000*1210mm

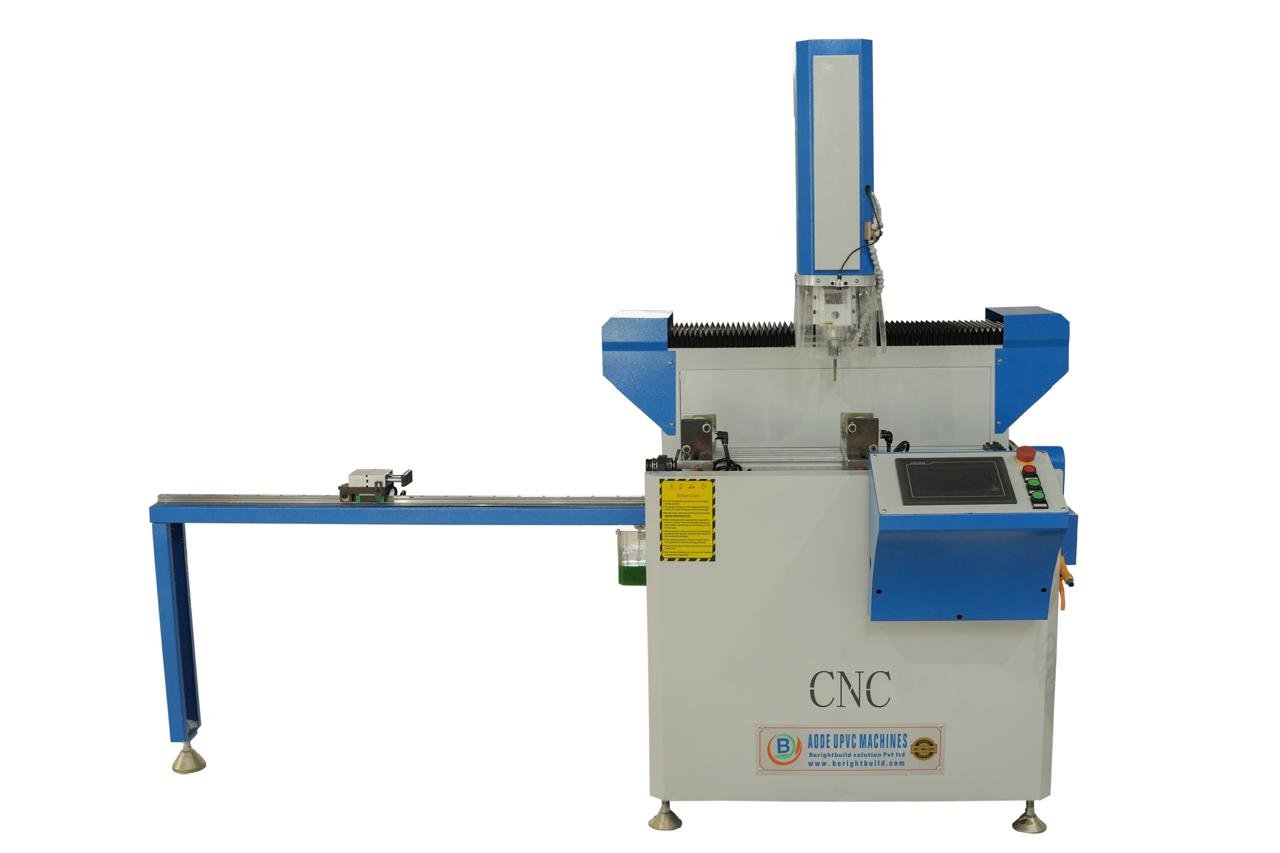

CNC ROUTING MACHINE FOR SYSTEAM ALUMINIUM SKZX-CNC-600
  • USED FOR ROUNTING AND LOCKHOLE FOR UPVC,ALUMINIUM & SYSTEAM A PROFILES.
  • AUTOMATIC OPERATION.
  • FULLY CONTROLLED BY PLC.
  • HIGH ACCURACY.
  • CAN SAVE PROGRAMS IN ADVANCE.
  • AUTOMATICALLY CHANGING THE SIDE OF PROFILES.
Input Power 2.2Kw
Power Supply 380V
Working Pressure 0.4-0.6 mpa

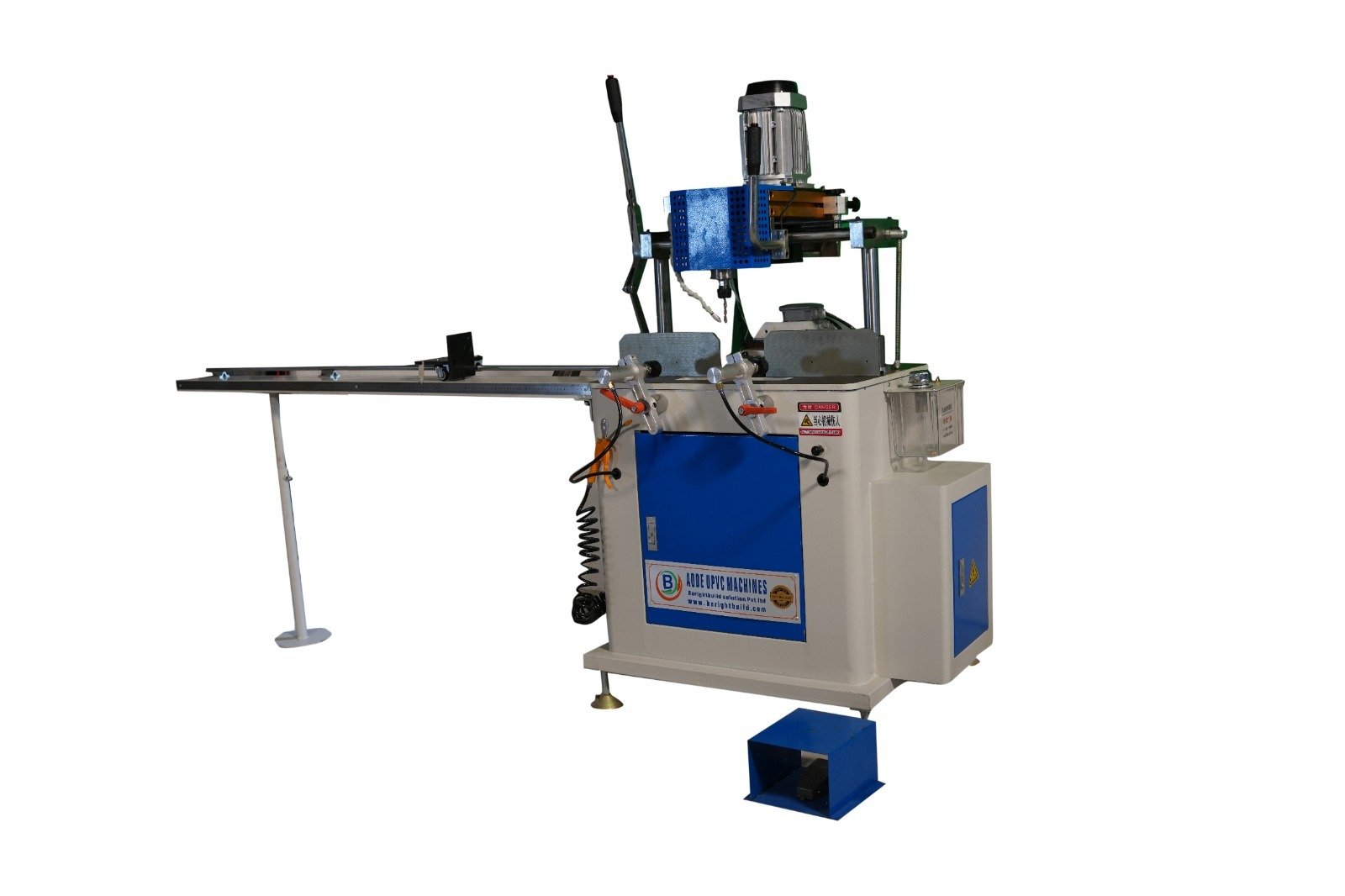

HEAVY SYSTEM ALUMINIUM LOCKHOLE CUM ROUTING MACHINE LZF-100X300
  • MAIN USAGE IS MAKING SLOT FOR FIXING HARDWARES.
  • USED FOR PROCESSING FOR ALUMINUM AND UPVC DOORS AND WINDORS.
  • TOP HEAD USED FOR COPY ROUTING (cylinder hole, touch & Pop up handle etc).
  • BOTTOM HEAD IS USED FOR TRIPLE DRILLING (TO FIX HANDLE HOLE & ESPAGS IN UPVC WINDOWS & DOORS.
  • PNEUMATIC CLAMPING.
  • WITH EATURES OF COMPACT STRUCTURE.
  • IT CAN USE FOR HEAVY ALUMINIUM PROFILES.
Input Power 380V 50HZ
Power Supply 380V 50HZ
Diameter of Milling Cutters 5/8mm
Contour Dimension 1000*1130*1500
ALUMINIUM CUM UPVC LOCK HOLE CUM COPY ROUTING MACHINE SK02-100B
  • MAIN USAGE IS MAKING SLOT FOR FIXING HARDWARES.
  • USED FOR PROCESSING FOR ALUMINIUM AND UPVC DOORS AND WINDOORS.
  • TOP HEAD IS USED FOR COPY ROUTING (CYLINDER HOLE, TOUCH & POP UP HANDLE ETC).
  • BOTTOM HEAD IS USED FOR TRIPLE DRILLING (TO FIX HANDLE HOLE & ESPAGS IN UPVC WINDOWS & DOORS).
  • PNEUMATIC CLAMPING.
  • WITH FEATURES OF COMPACT STRUCTURE.
Input Power 1.85Kw
Power Supply 380V 50HZ
Diameter of Milling Cutters 5/8mm
Contour Dimension 1000*1130*1500
